Mirror Card Glossy Lamination Steel Plate For Card Body Lamination
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | USD 3 -15 per sheet |
| Packaging Details: | Strong plywood box with soft protection material inside |
| Delivery Time: | 5-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 thousand pieces per month |
|
Detail Information |
|||
| Material: | Glossy Stainless Steel Plates | Surface Finish: | Glossy Or Mirror Finish On Both Sides, Protected With Thin Films On Surface |
|---|---|---|---|
| Thickness: | 0.6mm Or 0.8mm | Package Method: | Strong Plywood Box With Soft Protection Material Inside |
| Highlight: | laminated steel sheet,stainless steel laminate sheets |
||
Product Description

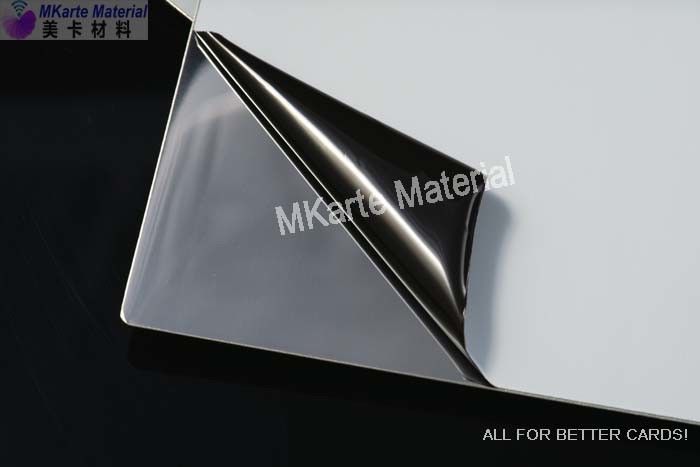

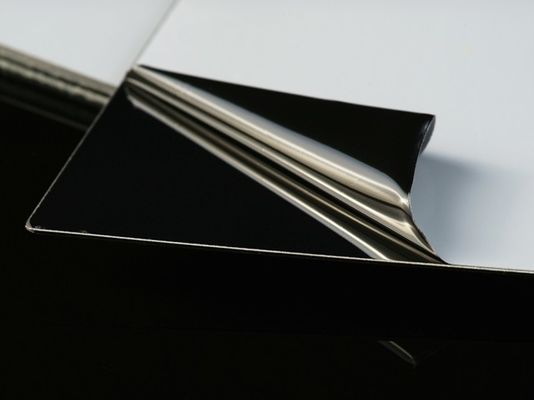

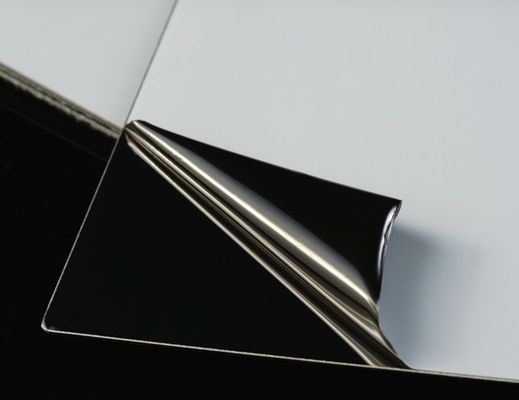

Mirror/Glossy Card Lamination Steel Plate MSP-G are used for laminating plastic card sheets in the cad laminator. It can ensure perfect plastic card surface finish after lamination. Our plates are being widely used by many card factories in both China and foreign countries worldwide.
Key Features:
1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2. Two sides are made glossy in the same quality.
3. There are no scratches, dents, stripes shadows and dust on plate surfaces.
4. The edges are smooth and deburred with the round curved corners.
5. After lamination, the plates are not sticking to the laminated plastic sheets.
Technical Parameters:
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 0.6mm, 0.8mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm.m
Surface roughness: Glossy plate (Ra＜0.03μm)
Glossy plate surface glossiness: over 800 GU at 20° (both sides)
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
