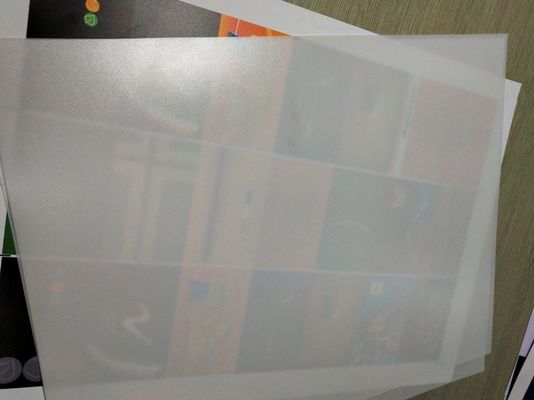

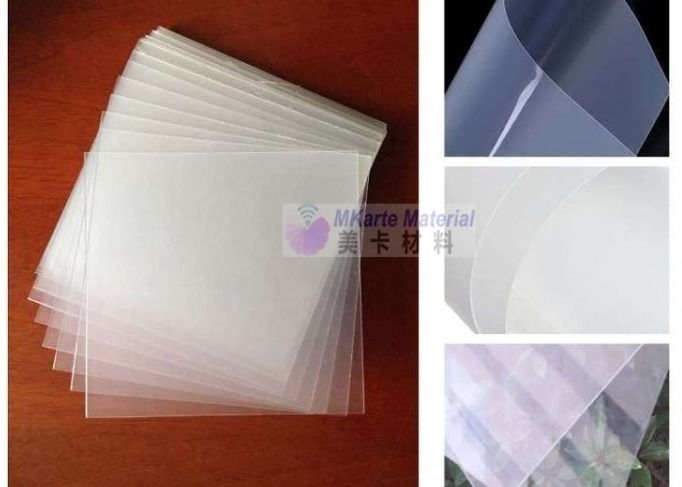

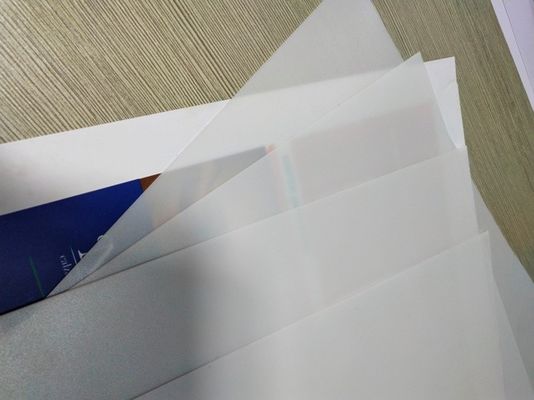

Anti-Fog PETG Clear Sheet Plastic Card Core Sheet For PETG Card Body Production
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCS-PETG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In standard export carton , 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-20working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Sheets per Week |
|
Detail Information |
|||
| Color: | Transparent Or Clear | Normal Thickness: | 0.10mm - 0.76mm |
|---|---|---|---|
| Appearance: | Both Sides Matte | Heating Shrinkage Ratio 105 ℃/10min: | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface Dyne (dynes/cm): | ≥38 | Density (g/cm3): | 1.30 ±0.05 |
| Shape: | In Sheet Or In Roll | Application: | It Is Widely Used For The Production Of High-end Credit Cards, ID Cards And Passport, Etc |
| Highlight: | petg clear plastic sheet,clear petg sheet |
||
Product Description
Transparent Offset Printing PETG Plastic Card Core Sheet for PETG Card Body Production
Production Specification
| 1. Transparent Offset Printing PETG Plastic Card Core Sheet Introduction |
Transparent Offset Printing PETG Plastic Card Core Sheet is widely used in card base production. It has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards and passport, etc.
PETG is a kind of transparent amorphous co polyester.
The performance of Transparent Offset Printing PETG Plastic Card Core Sheet is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advaes, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.
How to make PETG cards in general :
1. Print directly to the surface of sheets
2. Hot press laminate with PETG coated overlay films when the ink dries.
3. Punch out cards from the fused materials.
4. Other art-works, such as embossing, hot stamping, hole punching, screen printing etc.
5. Finished cards.
| 2. Transparent Offset Printing PETG Plastic Card Core Sheet Specification |
Transparent Offset Printing PETG Plastic Card Core Sheet is a more environmentally friendly card material, consider PETG, which is derived from polyester and is 100% recyclable. Widely used by credit card makers, PETG is biodegradable and doesn't emit harmful gas. PETG exhibits the same characteristics as PVC, such as durability and a wide array of print and finish options.
Features:
1. High chemical stability, fine anti-fire , super-transparent .
2. Highly UV .stabilized, good mechanical properties, high hardness and strength.
3. Well aging resistance, good self-extinguishing property and reliable insularity.
4. It is waterproof and with very good smooth surface, and also it is non deformable.
5. Non-toxic, environment-friendly material
6. Vivid color and high resolution photo quality.
7. Longer service life
8. The important feature: anti-stastic , anti-UV, anti-sticky
9. Application: plastic card production , chemical industry, oil industry, galvanization, water purification equipments, environment protection equipments, medical appliance and so on.
Parameters :
1. Size: A4 , A3 or as per customer requirements
2. Thickness: 0.10mm to 0.76mm
3. Color : Transparent or clear
4. Sample : A4 , A3 size or as customer requirements rigid PETG sheet with PP bag in box
5. Sheet packing: 30kg per bag or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
6. Pallets packing: 500- 2000kg per plywood pallet
7. Container loading: 20 tons as normal
8. Storage condition : Sealed, moisture-proof, room temperature under 40℃
| Product name | Transparent Offset Printing PETG Plastic Card Core Sheet for PETG Card Body Production |
| Color | Transparent or clear |
| Thickness Range | 0.10-0.76 mm |
| Vicat softening point (B50) | 78±2 |
| Vicat softening point (A120) | 80±2 |
| Density | 1.3±0.05 |
| Heat shrink | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface tension dynes/cm | ≥38 |
| Glue coating | With no coating on both sides |
| Storage | Sealed, moisture-proof, room temperature under 40℃ |
Product details :
Transparent Offset Printing PETG Plastic Card Core Sheet which is for PETG card making ,this material has under mentioned advaes :
1. Excellent impact strength and toughness
2. Easy to print, have excellent chemical resistance
3. High gloss, high transparency
4. Environmental protection: no harmful substances
5. PETG plastic card by sheets or by rolls are simple to be cutting
6. Longer service life
7. Economy: to shorten the processing time (excellent thermal forming performance)
Technical Parameters:
| Item | Parameters |
| Vicat softening point (B50) | 78±2 |
| Vicat softening point (A120) | 80±2 |
| Heating Shrinkage ratio 105 ℃/10min | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface Dyne (dynes/cm) | ≥38 |
| Normal thickness in mm | 0.10-0.76 |
| Density (g/cm3) | 1.30 ±0.05 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | offset printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
| 3. Application of Transparent Offset Printing PETG Plastic Card Core Sheet |
It is widely used for the production of high-end credit cards, ID cards and passport, etc.
PETG is a kind of transparent amorphous co polyester
| 4. Packing of Transparent Offset Printing PETG Plastic Card Core Sheet |
In standard export carton and are packed on plywood pallet
Inner package: PE film or pp bag
Outer package: pallet/container
