White Plastic PETG Card Core Sheet For PETG Smart Card Body Production
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Certification: | ISO 9001 |
| Model Number: | MCS-PETG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Thickness: | 0.10-0.76 Or Customized | Surface: | Fine Matte On Both Sides Without Any Coating On Both Sides |
|---|---|---|---|
| Surface Dyne (dynes/cm): | ≥38 | Feature: | Anti-stastic , Anti-UV, Anti-sticky |
| Density: | 1.30 ±0.05 (g/cm3) | Suitable Printer: | Offset Or Silk Screen Printer |
| Size: | A4, A3 Or Customized | Packaging Method: | PE Bag+paper Carton+pallet |
| Highlight: | petg clear plastic sheet,petg sheet 1mm |
||
Product Description

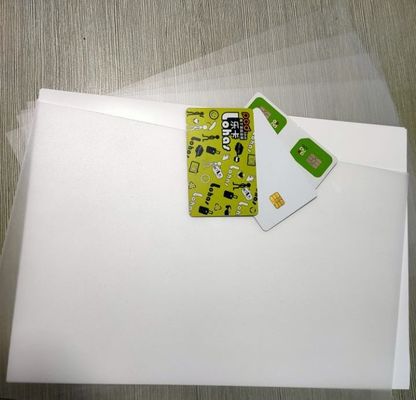

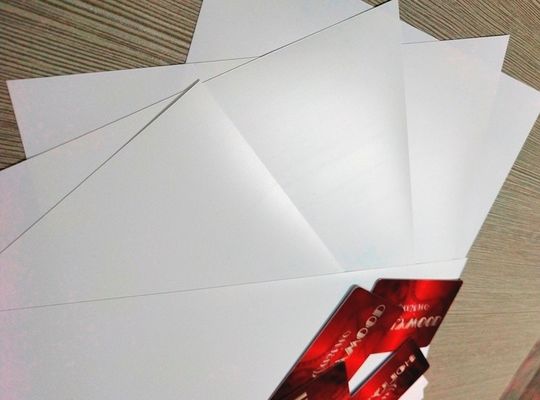

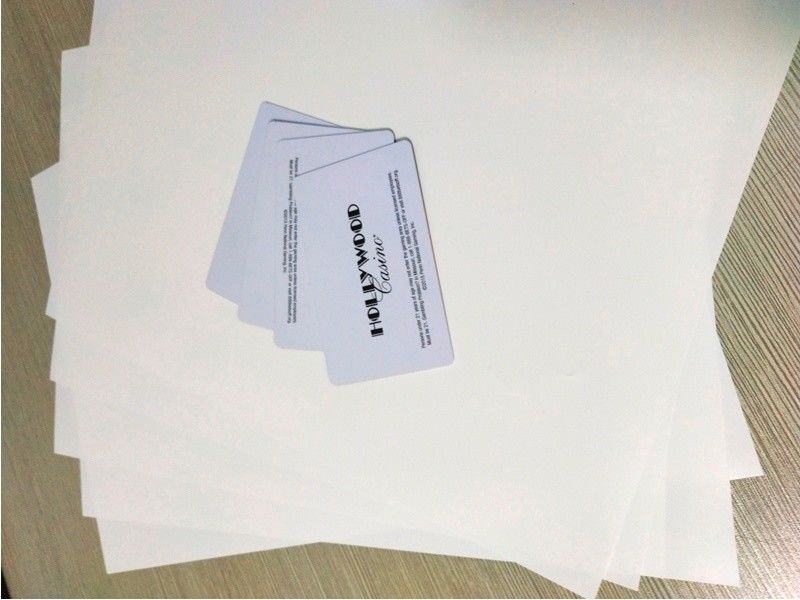

White PETG Card Core Sheet or Card Base Sheet for PETG Smart Card Body Production Purpose
| 1. Introduction of White PETG Card Core Sheet or Card Base Sheet for PETG Smart Card Body Production Purpose |
The performance of such PETG plastic sheet is quite different from PET and PC. PETG plate has outstanding toughness and high impact strength, its impact strength is 3-10 times more than ordinary plastic plate, and it has a wide processing range, high mechanical strength and excellent flexibility. Compared with PVC, it has high transparency, good luster and easy to print. At the same time, PETG has environmental protection advaes, and it can be recycled without polluting the environment. PETG sheet has low flammability, good fire resistance, no combustion support, low smoke emission, no harmful substances after combustion.
It is widely used in card base production. It has such features as impact resistance, high temperature resistance, anti-static, abrasion, folding and high strength. It is widely used for the production of high-end credit cards, ID cards and passport, etc.
Characteristic:
1.Good lamination properties
2.Good impact resistance
3.Good chemical resistance
4.Excellent printability with either offset or screen printing
5.Laminating Temp 120 degrees Celcius-130 degrees Celcius (lab conditions)
Features:
1). High chemical stability, fine anti-fire .
2). Highly UV .stabilized, good mechanical properties, high hardness and strength.
3). Well aging resistance, good self-extinguishing property and reliable insularity.
4). It is waterproof and with very good smooth surface, and also it is non deformable.
5). Non-toxic, environment-friendly material
6). Vivid color and high resolution photo quality.
7). Longer service life
8). The important feature: anti-stastic , anti-UV, anti-sticky
9). Application: plastic card production , chemical industry, oil industry, galvanization, water purification equipments, environment. protection equipments, medical appliance and so on.
| 2. Specification of White PETG Card Core Sheet or Card Base Sheet for PETG Smart Card Body Production Purpose |
Technical Parameters:
| Item | Parameters |
| Vicat softening point (B50) | 78±2 |
| Vicat softening point (A120) | 80±2 |
| Heating Shrinkage ratio 105 ℃/10min | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface Dyne (dynes/cm) | ≥38 |
| Normal thickness in mm | 0.1-0.76 |
| Density (g/cm3) | 1.30 ±0.05 |
| Peel Strength (90°, 300mm/min) | ≥6.0 N/cm |
| Aging time (65℃ temp./95% humidity ) | ＞200 hours |
| Suitable ink | Offset printing UV ink, Pigment and dye ink for inkjet printing as well as digital printing ink |
Parameters :
1). Size: A4 , A3 or as per customer requirements
2). Thickness: 0.10mm to 0.76mm
3). Color : White
4). Sample : A4 , A3 size or as customer requirements rigid PETG sheet with PP bag in box
5). Sheet packing: 30kg per bag or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
6). Pallets packing: 500- 2000kg per plywood pallet
7). Container loading: 20 tons as normal
8). Storage condition : Sealed, moisture-proof, room temperature under 40℃
| Product name | PETG Plastic Card Base for Card Body Production - White Plastic Card Core Sheet |
| Color | White |
| Thickness | 0.10 mm -0.76 mm |
| Vicat softening point (B50) | 78±2 |
| Vicat softening point (A120) | 80±2 |
| Density | 1.3±0.05 (g/cm3) |
| Heat shrink | ≥-8.0 % (longitudinal) &≥-4.0 %(transverse) |
| Surface tension | ≥38 dynes/cm |
| Glue coated | Without coating on both sides |
| Storage | Sealed, moisture-proof, room temperature under 40℃ |
| 3. Application of White PETG Card Core Sheet or Card Base Sheet for PETG Smart Card Body Production Purpose |
It is widely used for the production of high-end credit cards, ID cards and passport, etc.

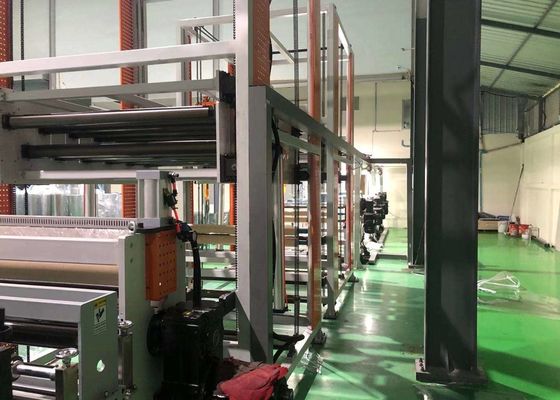

| 4. Production facility of White PETG Card Core Sheet or Card Base Sheet for PETG Smart Card Body Production Purpose |
