200sheets/Package A4 0.15mm Digital Printing Pvc Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Certification: | ISO |
| Model Number: | MDP-KM-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | USD0.1-0.35/sheet |
| Packaging Details: | 100 or 200 sheets/package. |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 30 TONS PER MONTH |
|
Detail Information |
|||
| Size: | A4, A3 Or As Per Customer Requirements (tolerance +/-0.5mm) | Thickness: | 0.15mm-0.40mm |
|---|---|---|---|
| Coating Description: | Digital Ink Coating On One Side And Lamination Glue Coating On Another Side | Color: | White/Super White |
| Package Method: | 100 Or 200sheets/package | Storage Condition: | Sealed, Moisture-proof, Room Temperature Under 40℃ |
| Highlight: | 0.15mm digital printing pvc sheet,0.15mm pvc digital printing sheet,200sheets/package Digital Printing Pvc Sheet |
||
Product Description

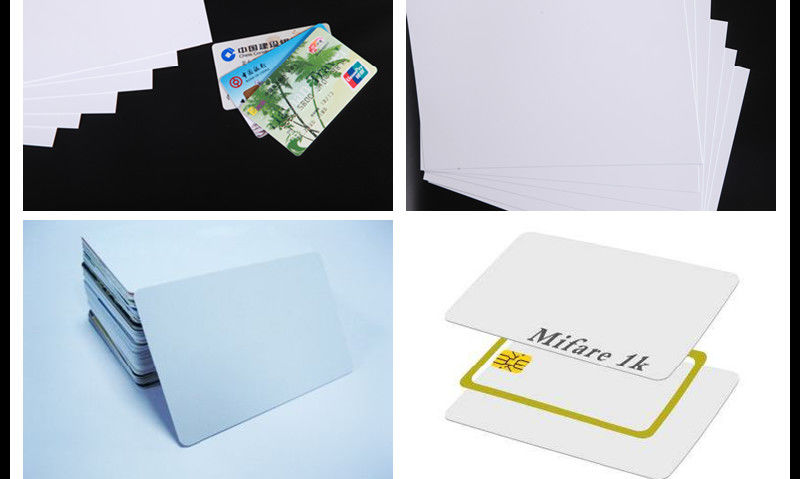

Konica Digital printing PVC sheet for PVC smart card production
1. Konica Digital printing PVC sheet for PVC smart card production- Introduction
Konica Digital printing PVC sheet MDP-KM-W is suitable for Konica Minolta digital printer series. It could be printed directly by Konica printers with perfect printing quality.
● Suitable for the whole series of Konica Minolta printers.
● High definition images.
● No crack occurs on the printed images after lamination at high temperature.
2. Konica Digital printing PVC sheet for PVC smart card production- Parameters:
| Size | A4, A3 or as per customer requirements (tolerance +/-0.5mm) |
| Thickness | 0.15mm-0.40mm |
| Color | Common white/supper white |
| Package method | 100 or 200 sheets/package. |
| Storage condition | Sealed, moisture-proof, room temperature under |

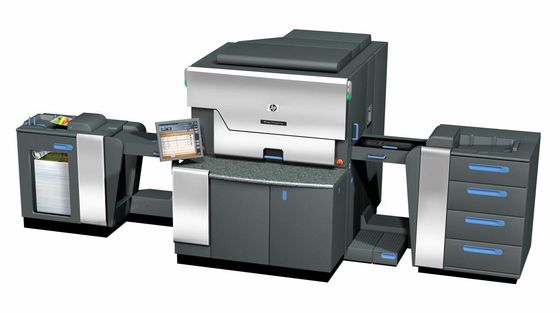

One side with digital printing coating, and other side with laminating oil (for easy lamination). Your designed layout can be printed on the printing side with HP indigo, Xerox , konica printer etc directly and then be laminated with overlay for making cards.
3. Konica Digital printing PVC sheet for PVC smart card production- Application
Digital printing sheet, also called electronic ink printing sheet, it is a novel material used for digitization ink printing, and its color is recovered accurately. Printing ink has strong adhesive force, high laminating strength, clear graphic outline, and free from static electricity. Generally, it is matched with tape film for making laminated card
4. Konica Digital printing PVC sheet for PVC smart card production- Packing and Stroage

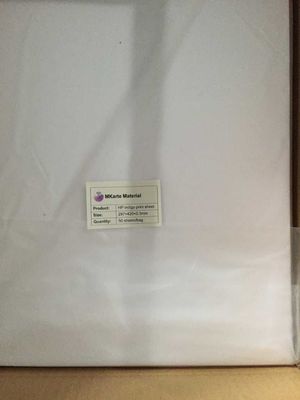

1). Package method: 100 or 200 sheets/package.
2). Storage condition: Sealed, moisture-proof, room temperature under 40℃
| Product Test Report | |||||
| Product Name: PVC Digital Printing Sheet | |||||
| Inspected Items | Unit | Inspection Standard | Test Result | ||
| Appearance | The color is even, No black impurity spots, No obvious scratch |
Meet the requirements | |||
| Length | mm | ±1 | OK | ||
| Width | mm | ±1 | OK | ||
| Thickness | mm | ±10% | OK | ||
| Squareness | mm/m | ≤1 | 0.4 | ||
| Density | g/cm3 | 1.42±0.05 | 1.41 | ||
| Chromatic aberration | ∆E | ≤1.0 | 0.51 | ||
| Pulling Strength | MD | MPa | ≥45 | 47 | |
| CD | ≥43 | 43.1 | |||
| Roughness Ra |
4# | ṷ m | 0.7～1.8 | 1.28 | |
| 5# | ṷ m | 0.7～1.8 | 0.97 | ||
| Roughness Rz |
4# | ṷ m | 4～12 | 7.912 | |
| 5# | ṷ m | 4～12 | 6.91 | ||
| Surface Tension | 4# | Dynes/cm | ≥34 | 34.5 | |
| 5# | ≥34 | 34 | |||
| Heating shrinkage rate | MD | % | ≤-6.0 | -2 | |
| CD | ≤+2.2 | 0 | |||
| Whiteness | 96.2 | ||||
| Transmittance | % | 5.5 | |||
| Vicat softening point | ℃ | 78±2 | 78.9 | ||
