Mirror / Glossy Surface Card 0.8mm Laminated Steel Plate
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MSP-G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pcs |
|---|---|
| Price: | USD 5 -18 per sheet or negotiable |

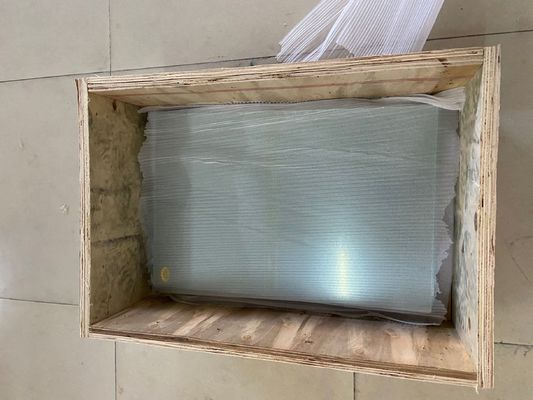

| Packaging Details: | Strong plywood box with soft protection material inside |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 40 thousand pieces per month |
|
Detail Information |
|||
| Product Name: | Mirror / Glossy Surface Card Lamination Steel Plate | Plate Surface: | Glossy Finish On Both Sides Of The Sheet |
|---|---|---|---|
| Surface Roughness: | Glossy Plate (Ra＜0.03μm) | Plate Size(L×W): | A4, A3 Or Custom-made Size |
| Appearance: | No Scratches, Dents, Stripes Shadows And Dust On Plate Surfaces. | Application: | Used For Laminating Plastic Card Sheets In The Cad Laminator |
| Highlight: | 0.8mm laminated steel plate,mirror laminated steel plate,glossy surface laminated steel plate |
||
Product Description
0.8mm Thickness Mirror / Glossy Surface Card Lamination Steel Plate
1. Features of 0.8mm Thickness Mirror / Glossy Surface Card Lamination Steel Plate
Key Features:

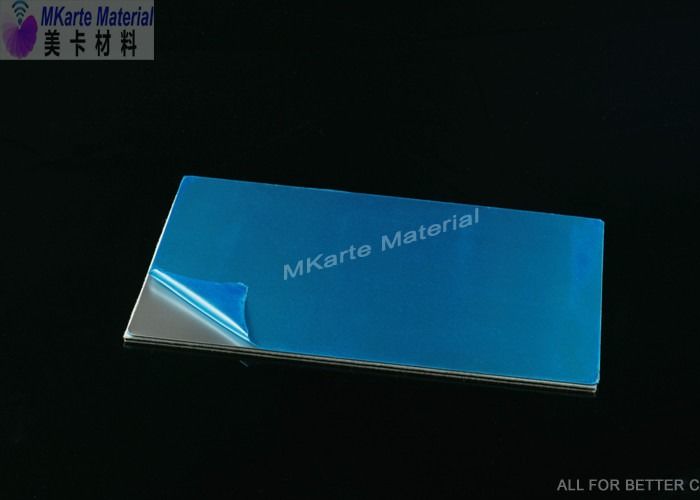

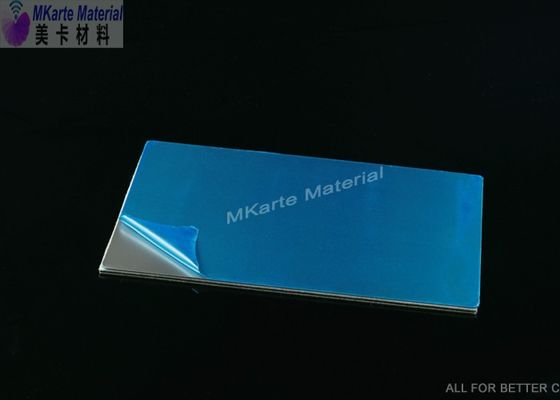

1. The two sides are covered with protection foils (blue thin films) to ensure good protection on both surfaces. There is no glue left after the foil is removed before the plate is used at the first time.
2. Two sides are made glossy in the same quality.
3. There are no scratches, dents, stripes shadows and dust on plate surfaces.
4. The edges are smooth and deburred with the round curved corners.
5. After lamination, the plates are not sticking to the laminated plastic sheets.
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate thickness | 1.0 mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm for length and width. |
| Plate flatness level: | Plate flatness level: |
| Surface | Glossy finish |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
| Packaging box | solid plywood carton with soft cushion protection inside. |
| Edge state | smooth and deburred with the round curved corners |
2. Parameters of 0.8mm Thickness Mirror / Glossy Surface Card Lamination Steel Plate
Technical Parameters:
Plate size(L×W): A4, A3 or custom-made size
Plate thickness: 1.0 mm (Thickness tolerance: ±0.05mm)
Dimension tolerance: ±1mm for length and width.
Plate flatness level: maximum 1 mm.m
Surface pattern: Fine silk/Rough silk
Surface hardness: HRC80±20
Thermal transmission: 0.04cal/℃.cm.sec at 20℃
Packaging box: solid plywood carton with soft cushion protection inside.
| Normal Thickness | 0.8 mm or 0.6mm (Thickness tolerance: ±0.05mm) |
| Dimension tolerance | ±1mm |
| Plate size(L×W) | A4, A3 or custom-made size |
| Plate flatness level | maximum 1 mm |
| Surface pattern | special pattern |
| Surface hardness | HRC80±20 |
| Thermal transmission | 0.04cal/℃.cm.sec at 20℃ |
3. More Description of 0.8mm Thickness Mirror / Glossy Surface Card Lamination Steel Plate
There are five kinds of steel plates:
1).Glossy steel plates
normal mirror effect,for planographic code and inkjet code.
2).Matte steel plates
on te surface there are tiny lights,thin and lubricious,for planographic code and inkjet code.
3).Coarse matte steel
Platoon lights on the surface,too coarse for planographic code.
4).Moderate coarse matte steel plates
no lights on the surface,moderate coarse.
5).Fine matte steel plates
no lights on the surface, relatively thin and lubricious, for paleographic code and
inkjet code.
Size:100mm*120mm;210mm*297mm;210mm*320mm;325mm*480mm;340mm*500mm
Thickness:0.5mm, 0.6mm,0.7mm, 0.8mm, 1mm
Detailed Product Description:
1). Glossy finish, matte finish, mirror finish,etc.
2). Size & thickness on request
3). High-grade stainless steel
Features:
1). Card laminator Accessories
2). 800 Micron thickness
3). Characteristic: heat-resistant, high elasticity
