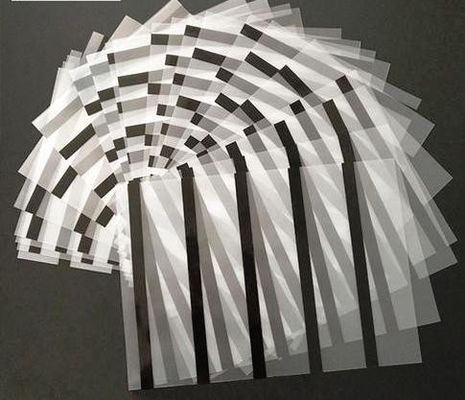

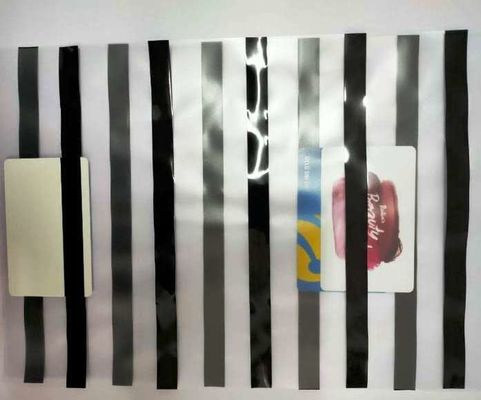

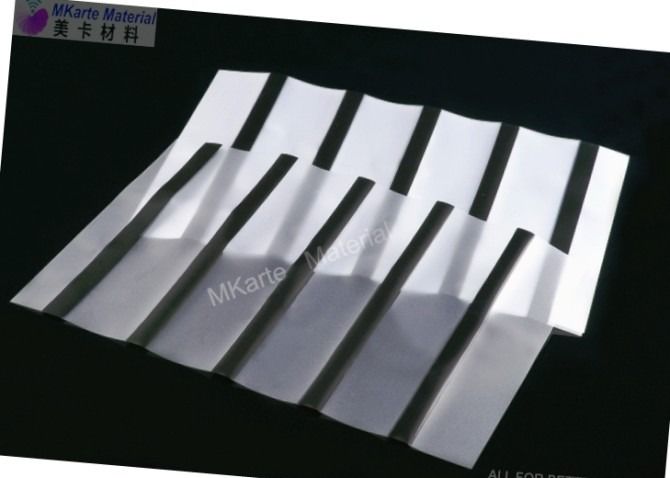

Yellow Resistance 0.08mm A3 Magnetic Stripe Coated Overlay Film
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MCO-MS-LOCO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200 sheets per bag or as per customer requirements. |
| Delivery Time: | 10-20working days |
| Payment Terms: | Western Union, MoneyGram, T/T, D/P, D/A, L/C |
| Supply Ability: | 6 million square meters per month |
|
Detail Information |
|||
| Thickness Range: | 0.06mm-0.1mm | Common Size: | A4, 295*380mm, Or Customized |
|---|---|---|---|
| Type: | Heat Pressing | Feature: | With Glue Coating |
| Product Name: | Magnetic Stripe Coated Overlay Film | Advae: | Waterproof, Moistureproof, Customized Layout |
| Highlight: | A3 Magnetic Stripe Coated Overlay,Magnetic Stripe Coated Overlay A3,0.08mm Magnetic Stripe Coated Overlay |
||
Product Description
Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film
1.Introduction of Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film
Product Description
Coated overlay with magnetic strip hico 2750 oe, used for card making and laminating ,one side is with magnetic strip,another side for laminating.
1.It has strong adhesive effect,
2. it apply to most of the bank card and smart card lamination.
3.Yellow resistance,
4.Magnetic strip is not easy to peel off .
| Name | Coated overlay laminating film with magnetic stripe |
| Size | 210mm*297mm,297mm*420mm,305mm*460mm,or customized. |
| Thickness | 0.04mm-0.1mm |
| Lamination temperature | 120℃-140℃ |
| Color | black,brown |
| Package |
50/100 sheets/bag with caraton shipped in wooden pallet, in sheet or in roll |
| Classification | HI-CO 2750 OE ,LO-CO 300 OE |
2. Features of Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film
Technical note:
In manufacturing process, it can be directly laminated with PVC printing sheet, simplify the fabrication process, save time, adhesive strength is high.
Steps to make cards:
1.Put printing core and two overlays together, then put into the laminator.(the laminating temperature and time is determined as per the instruction of the machine).Please be noticed that all glue sides of both PVC sheets and Overlays are put inward.
2.Tlamination lasts 10-15 minutes. The pressure is 6-8Mpa.The temperature is 120-140°C.
3.Cutting the card.
| Size | A4, A3 or as per customer requirements |
| Coated overlay thickness range in mm | 0.04,0.05,0.06,0.08,0.10 |
| Magnetic stripe feature | HICO/LOCO, standard width 12.7mm, black color, Peelable transfer model, Brand: LUCKY |
| Size tolerance | +/-0.5 mm in length and width, +/-5% in thickness. |
| Color | transparent with one-side glue coating |
| Package method | 100/200 sheets per bag or as per customer requirements |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight. |
3.Description of Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film
Product Description
Product Name: PVC Coated Overlay with Black Magnetic Stripe
PVC Coated magnetic stripe overlay film is used as an outer layer on the printed PVC sheets in card lamination. It simplifies the card making process and provides high bonding strength. It efficiently prevents the cards from scratching or cracking, and cuts down the waste rate in production.
Using method: cover the printed plastic sheets and then laminate together.
| Product name | Yellow Resistance 0.08mm A3 Size Magnetic Stripe Coated Overlay Film |
| Common size | A4, 210x297mm (A3, customized ) |
| Thickness | 0.08mm(0.04mm and 0.10mm are available) |
| Appearance | transparent |
| Coated | glue on back |
| Laminating temperature | 110-150℃ |
| Storage | -10~35℃, sealed, moisture-proof |
| Shelf life | 2 years |
| Packing | 100pcs/bag, 4000pcs/carton |
| carton dimensions | 450x340x190mm |
| Gross weight | 28kg |
