Waterproof 0.30mm Offset Printing Pvc Core Sheet
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100 or 200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10-15 million square meters per month |
|
Detail Information |
|||
| Glue Coating: | With No Coating | Feature: | Durable, Waterproof |
|---|---|---|---|
| Character: | Excellent Stable Quality | Application: | Smart Card Production |
| Productivity: | 500000 Sheets Per Month | Storage Condition: | Sealed, Moisture-proof, Room Temperature Under 40℃ |
| Highlight: | Offset Printing pvc core sheet,0.30mm pvc core sheet,Waterproof Pvc Core Sheet |
||
Product Description
PVC Card Material 0.30mm Customized Size Offset Printing PVC Core Sheet
1. Parameters of PVC Card Material 0.30mm Customized Size Offset Printing PVC Core Sheet
This kind of ordinary PVC sheet can be used for laminating, non-laminating, printing, coating and
cutting, such as membership cards and calendars.
Technical parameters:
| Item | Unit | Value | |
| Thickness | mm | 0.10-0.85 | |
| Density | g/cm3 | 1.42 ±0.05 | |
| Tensile Strength | Horizontal | MPa | ≥44 |
| Vertical | ≥46 | ||
| Vicat 5kg | ℃ | 80±2 | |
| Surface Roughness | Ra | μm | 0.7~1.8 |
| Rz | 4.0~12.0 | ||
| Surface Dyne | dynes/cm | ≥34 | |
2. Product Advae of PVC Card Material 0.30mm Customized Size Offset Printing PVC Core Sheet
Product Advae:
1. Smooth and Uniform Surface
It is waterproof and has very good smooth surface, and is non-deformable.
2. Reliable Electrical Insulation
It is widely used for different electrical equipment.
3. Excellent Chemical and Corrosion Resistance
It can withstand the erosion of a variety of chemicals.
4. Good Impact Resistance
It has good impact resistance, pressure-resisting and durability.
5. Easily Formed
It is easily formed due to good plasticity, which is suitable for die cutting, vacuum forming and folding.
6. Wide Usage
It can be laminated with uncoated overlay film after uv offset priting or screen printing.
| Size | in sheet A4,A3 or custom-made ( ( tolerance +/-0.5mm ) |
| Thickness | 0.12-0.76mm (tolerance +/-5%) |
| Color | Milk White (MOP-W-NF model)/Snow White (MOP-W-F model) |
| Package method | 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets. |
| Storage condition | Sealed, moisture-proof, room temperature under 40℃ , Keep it horizontally, avoid heavy pressing and direct sunlight |
*Customized design is accepted.
3. Application of of PVC Card Material 0.30mm Customized Size Offset Printing PVC Core Sheet

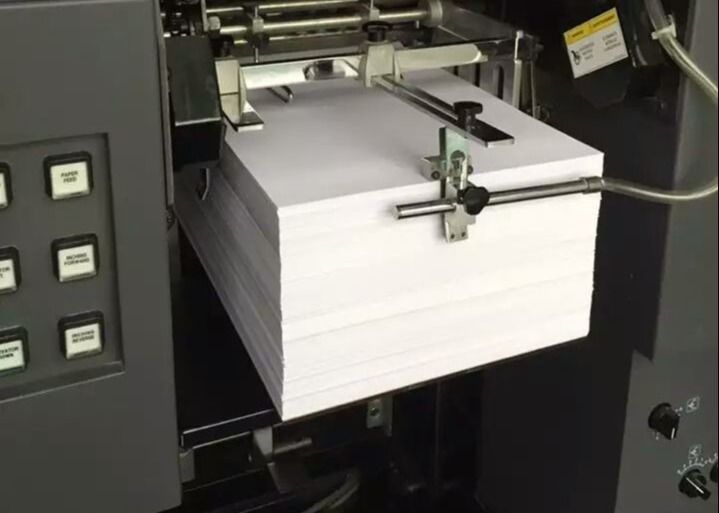

Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
