Woolen Hot Press Cushion Laminated Pad For Smart Card Press Laminator
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MRP-2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 sheets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| Delivery Time: | 5-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 10000 Square Meters per Month |
|
Detail Information |
|||
| Thickness: | 3 Mm | Rigidity: | 55±5 |
|---|---|---|---|
| Breaking Extensibility: | 350 % | Structure: | Woolen Felt Layers On The Surfaces With Black Silicon Rubber In The Middle. |
| Heatproof Performance: | 200 ℃ | Adhesion: | 60 N/mm |
| Tensile Strength:: | 80 N/mm | Length And Width: | A4, A3 Or Custom-made Size (size Tolerance: ±1mm) |
| Highlight: | woolen laminated pad,laminated pad for smart card,card press laminator laminated pad |
||
Product Description
Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator
Production Specification
| 1. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Introduction |
Woolen Felt Cushion Pad is designed for the lamination process for various plastic cards including bank card, credit card, and royalty card. It works with lamination steel plate in the plastic card lamination process.

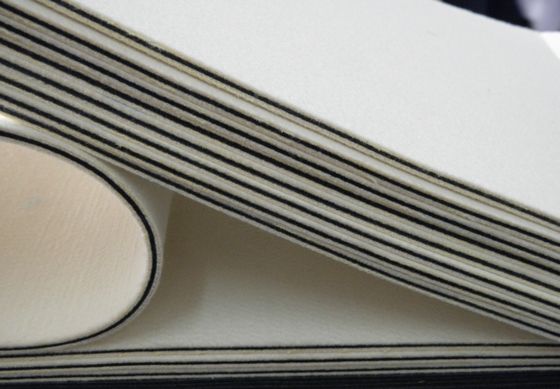

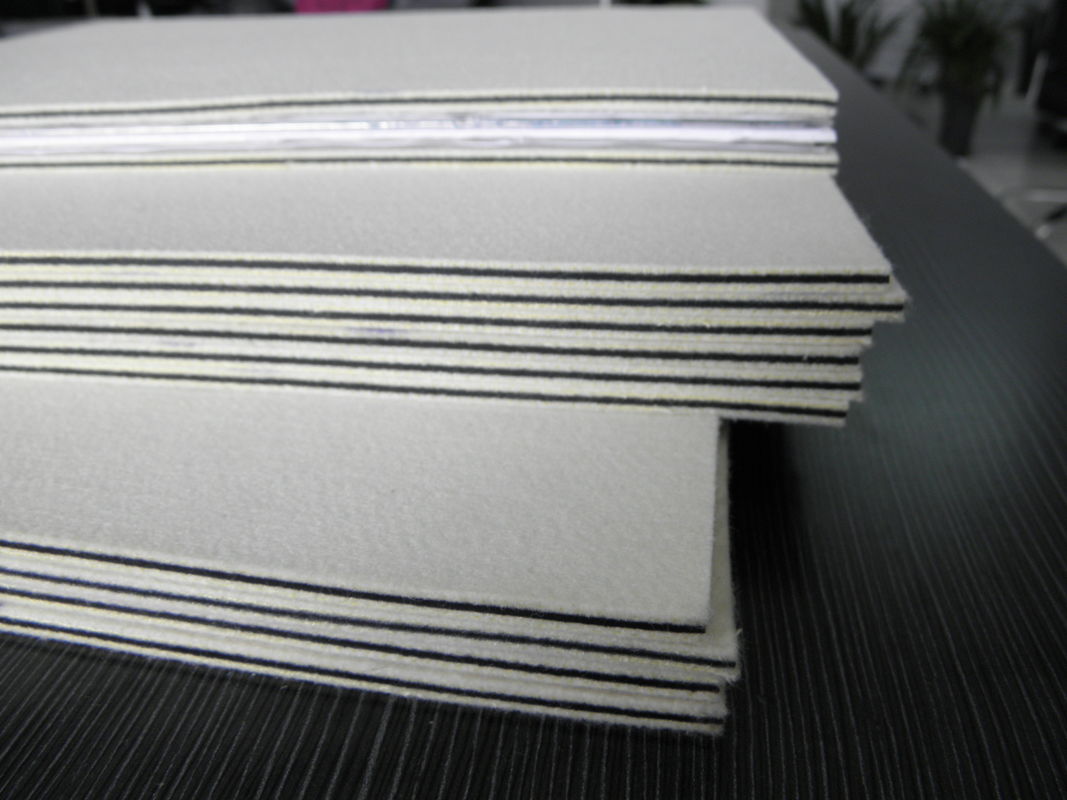

The structure of white silicon cushion pads is heatproof woolen felt layers on the surfaces with black silicon rubber in the middle.
Detailed Product Description
(1) Woolen felt cushion
(2) High tensile strength and tearing strength, heat resistant up to 250
(3) Long service life
(4) Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .
(5) Product specification: 1) thickness: 3mm 2) maximum width: 3800mm with no joint 3) any length 4) color: woolen felt layers on the surfaces with black silicon rubber in the middle.
| 2. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Specification |
Product Parameter :
1). Heatproof performance: 200℃
2). Tensile strength: 80 N/mm
3). Adhesion: 80 N/mm
4). Hardness SHORE A: 55±5
5). Thickness: 3mm

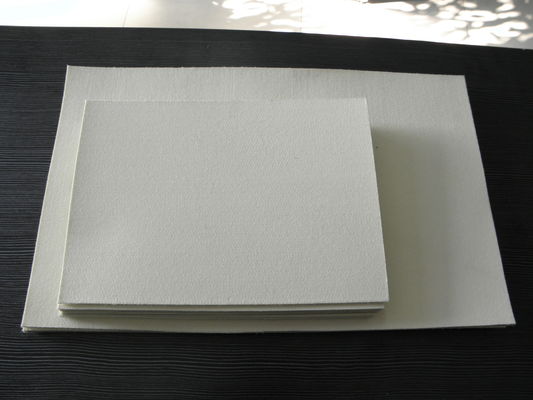

6). Length and width: in sheet, 201*297 mm ( A4 ) , 310*480 mm ( A3 ) or custom-made size (size tolerance: ±1mm)
| Facing material | High-temperature endurable felt |
| Middle material | Black silica gel |
| Rigidity | 50±5 |
| Tensile strength(N/mm) | 60 |
| Adhesion N/mm | 2.5-4.5 |
| Heat-resistant t (℃) | 200 |
| Breaking strength | 80MPa |
| Surface Finish | Woolen surface |
Key Features:
1). It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .
2). It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .
3). It has good performance of high temperature resistance and excellent elastic resilience .
4). It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .
The technical Items:
| Model number | MRP-2 |
| Normal Thickness | 3mm (Thickness tolerance: ±0.05mm) |
| Pad size | in sheet, A3, A4 or custom-made size |
| Heat-resistant t ( ℃ ) | 200 |
| Breaking strength | 80 Mpa |
| Hardness SHORE A | 55±5 |
| Adhesive force | 2.5 -4.5 N/mm |
| Breaking extensibility | 350 % |
| Function | Insulation Laminating woolen |
| Packaging box | In standard export carton or strong plywood package with proper soft protection material inside, suitable for long distance for sea or air transport |
| 3. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Application |
It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .
Technical Parameters:
1). Heatproof performance: 200℃
2). Tensile strength: 80 N/mm
3). Adhesion: 60 N/mm
4). Hardness SHORE A: 55±5
5). Thickness: 3mm
6). Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)
| 4. Black Woolen Laminated Pad, Hot Press Cushion Pad For Smart Card Press Laminator- Packing |
In standard export carton and In strong plywood package
