Yellowish White A4 Pvc Core Sheet 0.33mm Offset Printing
Product Details:
| Place of Origin: | China |
| Brand Name: | MK |
| Model Number: | MOP-W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30000 sheets or 2 tons |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10 million square meters per month |
|
Detail Information |
|||
| Size: | 210x297mm , 420x297mm Or Custom Made | Thickness Range: | 120-760 Micron (tolerance +/-5%) |
|---|---|---|---|
| Normal Color: | Yellowish White /blueish White | Application: | Used For PVC Card Production |
| Package: | Standard Export Cartons Are Packed On The Pallet | Storage Condition: | Sealed, Moisture-proof, Room Temperature Under 40℃ |
| Highlight: | yellowish white pvc core sheet,a4 pvc core sheet,pvc core sheet 0.33mm |
||
Product Description

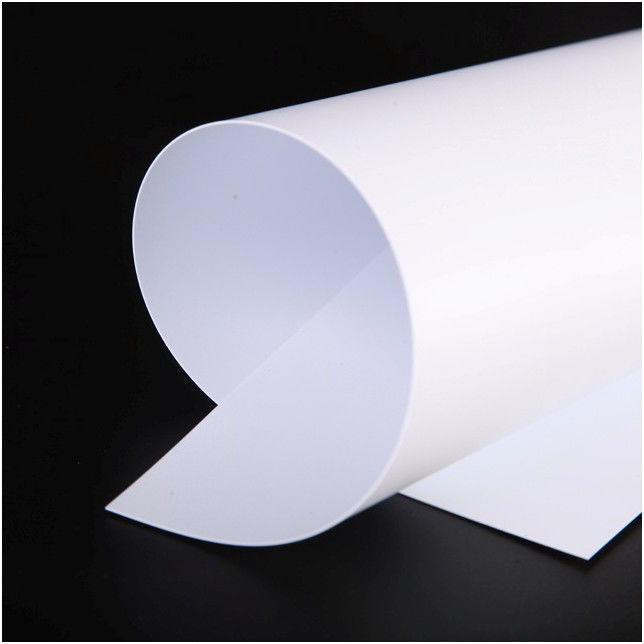

Yellowish White A4 0.33mm Offset Printing PVC Core Sheet
1. Product Introduction of Yellowish White A4 0.33mm Offset Printing PVC Core Sheet

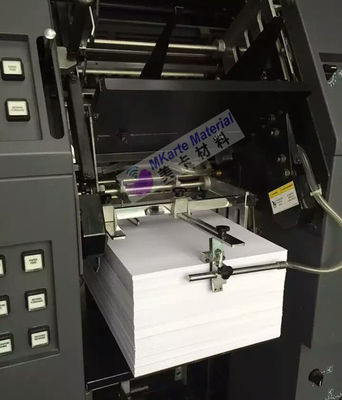

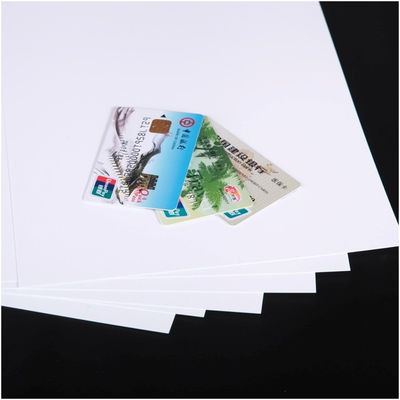

Offset printing sheets MOP series are designed for offset printer and silk screen printer use. They can also be used as non-printed middle core sheet. They are massively used by many card factories worldwide.
1) Suitable for the whole series of offset printer and silk screen printer.
2) High definition images.
3) Excellent ink adhesion with strong peeling strength after lamination.
4) No crack occurs on the printed images after lamination at high temperature.
2. Charaters of Yellowish White A4 0.33mm Offset Printing PVC Core Sheet
1). Thickness: 0.12-0.76mm
2). Color: Milk White (MOP-W-NF model)/Snow White (MOP-W-F model)
3). Suitable printer models: The whole series of offset printer and silk-screen printers
4). Package method: 100-200 sheets per PE bag, all the bags are firmly piled up and fixed on the solid plywood pallets.
5). Storage condition: Sealed, moisture-proof, room temperature under 40℃
| Item | Index | |
| Tensile strength | Longitudinal MPa | ≥45 |
| Transverse MPa | ≥40 | |
| Vicat ℃ | 77±2 | |
| Surface Tension dyne/cm | ≥35 | |
| Heat shrinkage rate% 140℃ 10min | Transverse ≤5 | |
| Longitudinal ≥-10 | ||
| Squareness mm | ±1 | |
| Thickness tolerance % | ±5 | |
| Roughness μm | Ra,μm | 0.7~1.4 |
| Rz,μm | 4~9 | |
3. Packing of Yellowish White A4 0.33mm Offset Printing PVC Core Sheet
50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
